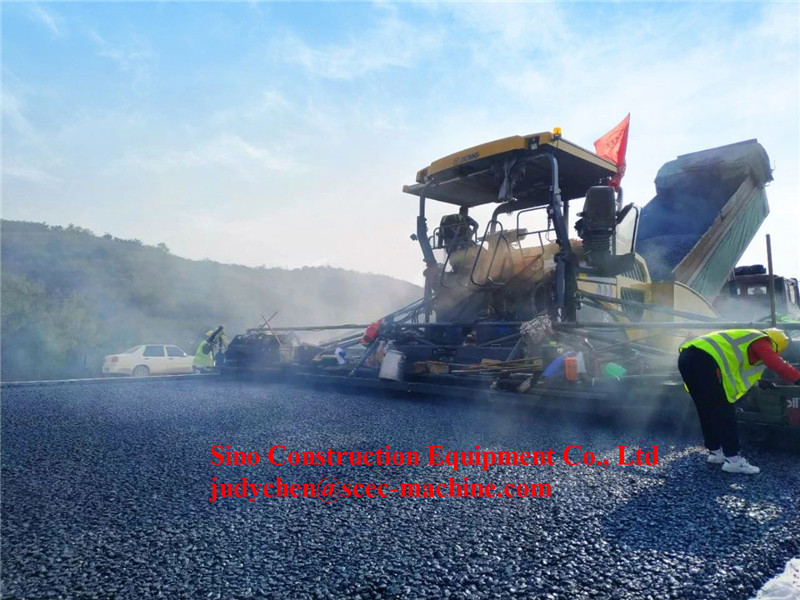

XCMG Road Construction Machine Road Concrete Asphalt Paver machine RP753 Paving Width 8m
Quick look of XCMG Road Construction Machine Road Concrete Asphalt Paver machine RP753 Paving Width 8m
Basic paving width (m): 2.5
Maximum paving width (m): 8
Paving speed (m / min): 20
Maximum paving thickness (mm): 400
Theoretical paving capacity (t / h): 700
Hopper capacity (t): 15
Engine power (kw): 140
Maximum paving width: (7 ~ 9 meters) large
Walking method: crawler
Technical specification of XCMG Road Construction Machine Road Concrete Asphalt Paver machine RP753 Paving Width 8m
| Item | Unit | Parameter |
| Basic paving width | m | 2.5 |
| Maximum paving width | m | 8 |
| Maximum paving thickness | mm | 400 |
| Working speed | m/min | 20 |
| Maximum speed | km/h | 3 |
| Theoretical productivity | t/h | 700 |
| Hopper capacity | t | 15 |
| Gradeability | ％ | 20 |
| Flatness (standard deviation) | mm | 1.2 |
| Cross slope error | % | ±0.2 |
| Crown adjustment range | % | -1～+4 |
| Diesel engine power | kW | 140 |
| Diesel engine speed | r/min | 2000 |
| Feeding speed | r/min | 0～90 |
| Feeding speed | m/min | 0～27 |
| Vibration speed | r/min | 0～1400 |
| Vibration amplitude | mm | Main: 5/Sub: 0,3,6,9,12 |
| Screed heating method | / | Air heating |
| Dimensions | mm | 6820×2720×3950 |
| Total Weight | t | 20.5～25 |
Features of XCMG Road Construction Machine Road Concrete Asphalt Paver machine RP753 Paving Width 8m
(1) Drive left and right independently, controlled by microcomputer, and paving speed adopts constant speed automatic control technology.
(2) Shangchai SC7H190 water-cooled supercharged engine (optional Dalian Deutz engine BF6M2012) is mature, reliable and powerful.
(3) Adopt three-in-one powerful compound radiator, through forced centralized heat removal, it can ensure long-term continuous work under high temperature of 50 ℃.
(4) Four sets of independent full hydraulic system are used for left and right feeding and feeding, and the material level adopts ultrasonic sensor control technology to ensure constant material level.
(5) The left and right feeding devices can be moved up and down conveniently to adapt to different paving thickness and reduce material segregation.
(6) The material distribution blade adopts high wear-resistant alloy material, and the conveying bottom plate and screed bottom plate adopt imported wear-resistant steel plate, which can effectively prolong the service life of the machine.
(7) Equipped with mechanically lengthened double-vibration ramming heating screed, the paving thickness is large, and the operation density is high.
(8) Two vertical and one horizontal automatic leveling system to ensure the smoothness of the paving.
(9) The mobile console can intuitively display various working functions, paving and driving speed, and can be installed left and right, easy to operate.
(10) The central centralized lubricating system can automatically supply oil lubrication to the bearings in high temperature parts.
(11) High degree of automation, simple and convenient operation, good construction quality and high operation efficiency.
